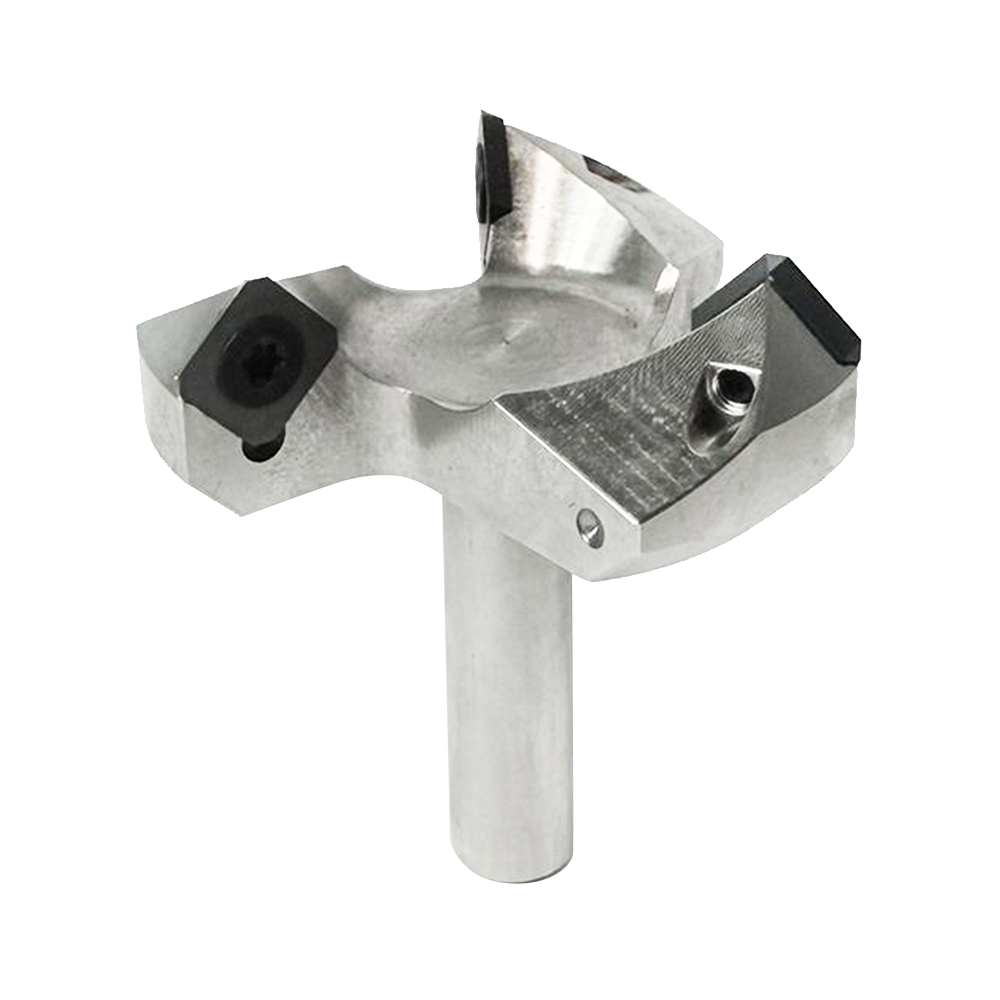

2-1/2" 3-Flute CNC Spoilboard Surfacing Bit

Back
2-1/2 3-Flute CNC Spoilboard Surfacing Bit

2-1/2 CNC Router Bit 3 Flutes | 12mm Shank | 53/64 Cutting Length


Professional-grade CNC router bit designed for high-performance machining in woodworking, cabinetry, and composite materials. Featuring a 2-1/2" (63.5mm) diameter and 53/64" (21mm) cutting length with a robust 12mm shank, this 3-flute carbide bit delivers exceptional material removal rates and superior finish quality. The optimized geometry ensures smooth operation at high RPMs, making it ideal for CNC routers in industrial applications.

Technical Specifications

IDKWS-BIT-RC-2255-M
Cutting Diameter2-1/2" (63.5mm)
Cutting Height21mm
Shank Diameter12mm
Overall Length66mm
Flutes3 Tungsten Carbide Inserts
ApplicationsSpoilboard surfacing, planing, slab leveling, fly cutting
MaterialHeavy-duty steel body with carbide inserts

Ideal for Cutting

MDF

MDF

Particle Board

Particle Board

Plywood

Plywood

General Wood

General Wood

Alumínio

Aluminum

Cobre

Copper

Latão

Brass

Plástico

Plastics

Compatible Equipment

CNC Machines

CNC Machines

Hinge Boring Machines

Hinge Boring Machines

Multi-Spindle Drills

Multi-Spindle
Drills

Drill Press

Drill Press

Hand Drills

Hand Drills
(Limited Use)
