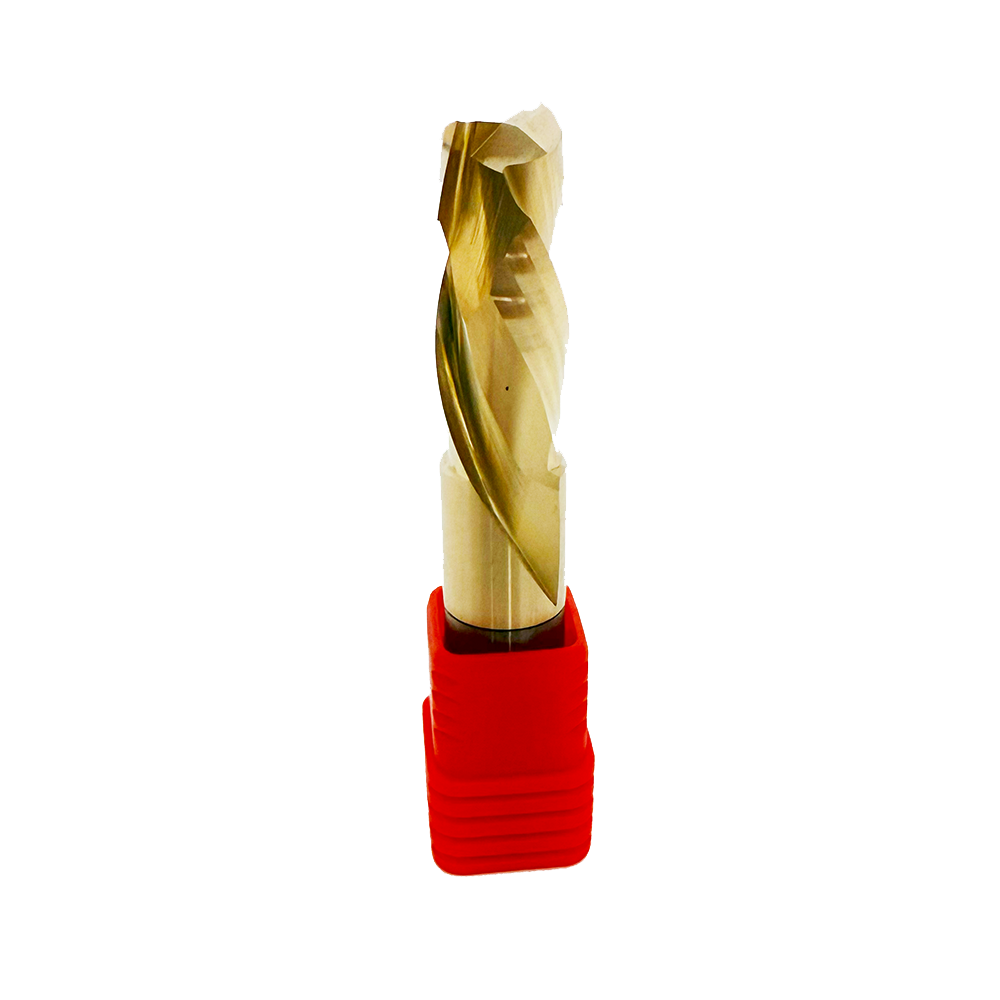

8mm Hinge Drill Bit for Precision Boring

1/2" Solid Carbide Mortise Compression Spiral Router Bit | 1-1/4" Cutting Length | 2 Flute | KWS America


Mortise Compression Spiral Router Bit delivers professional-grade performance for CNC mortising and joinery applications.

Featuring a specialized compression spiral design that combines up-cut and down-cut action in a single bit, this tool eliminates tear-out on both the top and bottom surfaces of materials.

With a 1/2" diameter and 1-1/4" cutting length, this solid carbide bit ensures clean, precise cuts in plywood, laminated panels, and composite materials - making it ideal for furniture making, cabinet construction, and precision woodworking.

Technical Specifications

IDKWS-BIT-46354
Cutting Diameter1/2" (12.7mm)
Cutting Length1-1/4" (31.75mm)
Shank Diameter1/2" (12.7mm)
Overall Length3" (76.2mm)
Flutes2T Compression Spiral
MaterialSolid Carbide with Anti-Friction Coating

Ideal for Cutting

MDF

MDF

Particle Board

Particle Board

Plywood

Plywood

General Wood

General Wood

Alumínio

Aluminum

Cobre

Copper

Latão

Brass

Plástico

Plastics

Compatible Equipment

CNC Machines

CNC Machines

Hinge Boring Machines

Hinge Boring Machines

Multi-Spindle Drills

Multi-Spindle
Drills

Drill Press

Drill Press

Hand Drills

Hand Drills
(Limited Use)
